Texas Instruments
LMZ23610TZE/NOPB
10A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage and Current Sharing 11-PFM -40 to 85
MountingSurface Mount
Power50W
Quick Jump:
Technical Specifications
Texas Instruments LMZ23610TZE/NOPB technical specifications.
General
Efficiency
93%
Height
0.23inch
Lead Free
Lead Free
Length
0.59inch
Max Input Voltage
36V
Min Input Voltage
6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Mount
Surface Mount
Number of Outputs
1
Output Current
10A
Output Power
50W
Output Voltage
6V
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Voltage - Output 1
6V
Width
0.59inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMZ23610TZE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMZ23610TZE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

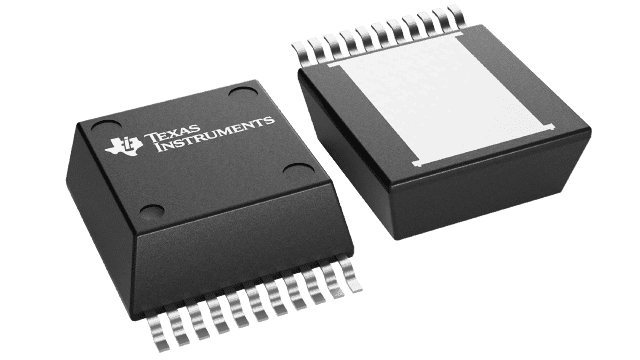

Product Images
