20A step-down DC/DC power module with 3V to 14.5V input range and 600mV to 3.6V output voltage. Features 96% efficiency, non-isolated operation, and integrated UVLO, OCP, and OTP protection. Housed in a 15x16x5.8mm QFN package, this lead-free component offers a maximum output current of 20A and operates from -40°C to 85°C.
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments LMZ31520RLGT technical specifications.
General
Package/Case
QFN
Depth
16mm
Efficiency
96%
Features
UVLO, OCP, OTP
Height
0.23inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
0.63inch
Max Input Voltage (DC)
14.5V
Min Input Voltage (DC)
3V
Max Input Voltage
14.5V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20A
Min Output Voltage
600mV
Max Power Dissipation
72W
Number of Outputs
1
Operating Supply Voltage
14.5V
Output Current
20A
Output Voltage
3.6V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Thickness
5.8mm
Voltage - Output 1
3.6V
Width
0.59inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMZ31520RLGT Datasheet
Download the complete datasheet for Texas Instruments LMZ31520RLGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

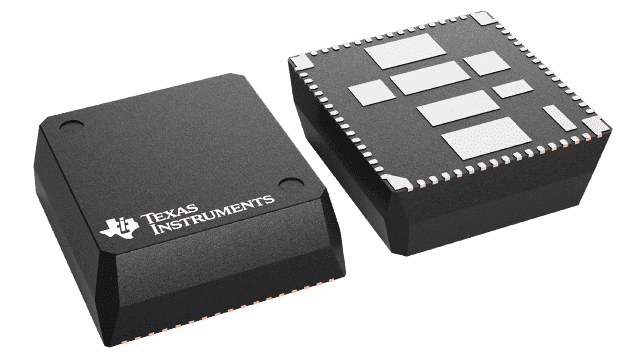

Product Images
