10A DC-DC step-down power module with 94% efficiency, featuring a wide input voltage range of 2.95V to 17V and a fixed 5.5V output. This non-isolated module supports current sharing and includes over-voltage lockout (UVLO), over-current protection (OCP), and over-temperature protection (OTP). Packaged in a compact 10x10x4.3mm QFN, it operates from -40°C to 85°C and is RoHS compliant.
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments LMZ31710RVQR technical specifications.
General
| Package/Case | QFN |
| Depth | 10.15mm |
| Efficiency | 94% |
| Features | UVLO, OCP, OTP |
| Height | 0.17inch |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 0.4inch |
| Max Input Voltage | 17V |
| Min Input Voltage | 2.95V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10A |
| Number of Outputs | 1 |
| Operating Supply Voltage | 12V |
| Output Current | 10A |
| Output Voltage | 5.5V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Voltage - Output 1 | 5.5V |
| Width | 0.4inch |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMZ31710RVQR Datasheet
Download the complete datasheet for Texas Instruments LMZ31710RVQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

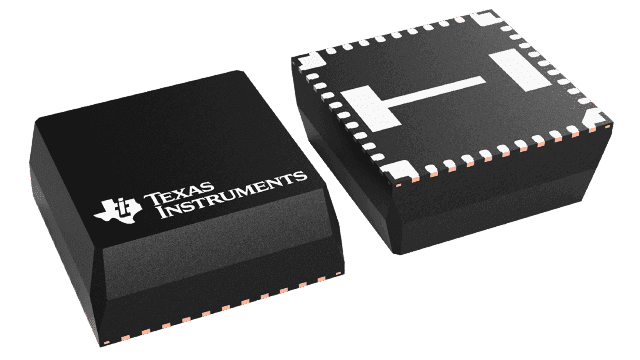

Product Images
