10A, non-isolated DC-DC converter module with adjustable output voltage from 600mV to 5.5V. Features include UVLO, OCP, and OTP protection, with a maximum input voltage of 17V and a minimum of 2.95V. This 42-pin QFN package module offers up to 94% efficiency and a maximum power dissipation of 55W, operating across a temperature range of -40°C to 85°C. Packaged on tape and reel, it is RoHS compliant.
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments LMZ31710RVQT technical specifications.
General
Package/Case
QFN
Depth
10.15mm
Efficiency
94%
Features
UVLO, OCP, OTP
Height
0.17inch
Isolation
Non-Isolated
Lead Free
Contains Lead
Length
10.15mm
Max Input Voltage
17V
Min Input Voltage
2.95V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Voltage
5.5V
Min Output Voltage
600mV
Max Power Dissipation
55W
Min Supply Voltage
2.95V
Number of Outputs
1
Operating Supply Current
100uA
Operating Supply Voltage
12V
Output Current
10A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Thickness
4.3mm
Voltage - Output 1
5.5V
Width
0.39inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMZ31710RVQT Datasheet
Download the complete datasheet for Texas Instruments LMZ31710RVQT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

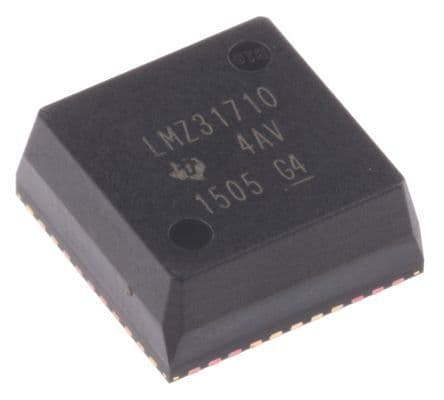

Product Images
