100-mA, low-dropout voltage regulator, featuring a maximum input voltage of 30V and a maximum output current of 100mA. This positive, fixed/adjustable output regulator offers a 0.5% output voltage accuracy with a reference voltage of 1.25V. Operating across a temperature range of -40°C to 125°C, it is housed in a lead-free, surface-mount SOIC package with dimensions of 4.9mm (L) x 3.9mm (W) x 1.45mm (H). The device includes power good and enable functions, with a quiescent current of 120µA.
PackageSOIC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP2951ACM/NOPB technical specifications.
General
Accuracy
0.5%
Package/Case
SOIC
Height
1.45mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
30V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
29V
Min Output Voltage
1.235V
Max Supply Current
14mA
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed, Adjustable
Output Voltage
29V
Output Voltage Accuracy
0.5%
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
120uA
Reference Voltage
1.25V
RoHS Compliant
Yes
Thickness
1.58mm
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP2951ACM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP2951ACM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

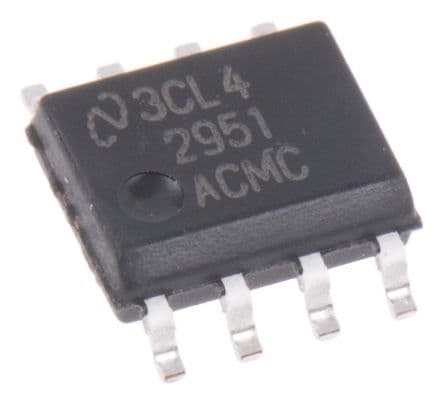

Product Images
