150mA, 3.3V fixed output positive linear voltage regulator with 1% output voltage accuracy. Features a low dropout voltage of 280mV and a maximum input voltage of 16V. Operates from -40°C to 125°C and is housed in a compact SOT-23 package. Offers a quiescent current of 850µA and a power supply rejection ratio of 45dB. Lead-free and RoHS compliant.
PackageSOT-23
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP2985A-33DBVR technical specifications.
General
Accuracy
1%
Package/Case
SOT-23
Dropout Voltage
280mV
Height
1.45mm
Input Bias Current
850uA
Lead Free
Lead Free
Length
2.9mm
Max Input Voltage
16V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Supply Current
2.5mA
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
45dB
Quiescent Current
850uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
1.2mm
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP2985A-33DBVR Datasheet
Download the complete datasheet for Texas Instruments LP2985A-33DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

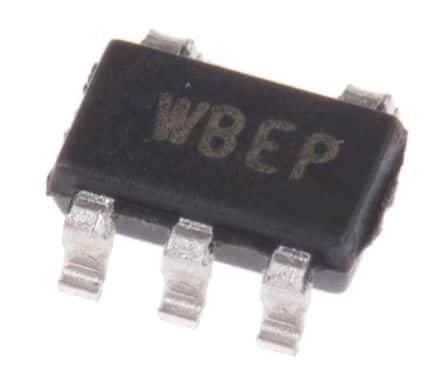

Product Images
