Texas Instruments
LP3943ISQ
16 channel RGB/White LED driver with independent string control via SMBUS/I2C 24-WQFN -40 to 85
Current550uA
MountingSurface Mount
Power400mW
Quick Jump:
Technical Specifications
Texas Instruments LP3943ISQ technical specifications.
General
Dimming
I²C, SMBUS
Lead Free
Contains Lead
Low Level Output Current
25mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
400mW
Max Supply Current
550uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Outputs
16
Number of Segments
16
Output Current per Channel
25mA
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
400mW
Quiescent Current
350uA
Radiation Hardening
No
RoHS Compliant
No
Supply Current
550uA
Width
4mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LP3943ISQ Datasheet
Download the complete datasheet for Texas Instruments LP3943ISQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

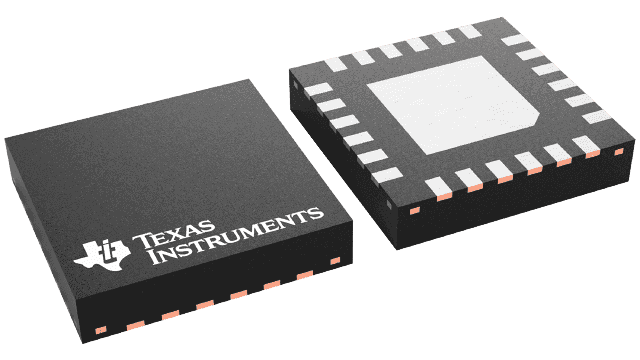

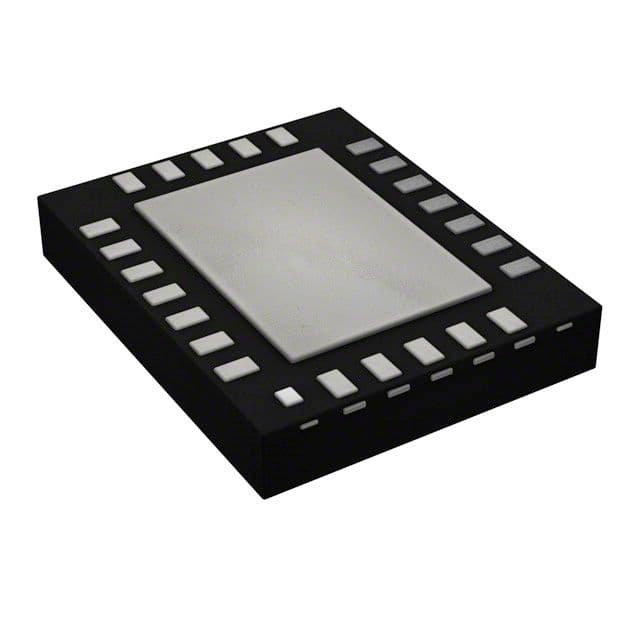

Product Images
