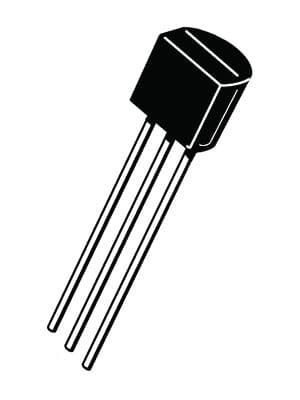

NPN bipolar junction transistor (BJT) in a TO-92 package, designed for through-hole mounting. Features a maximum collector-emitter voltage (VCEO) of 36V and a maximum collector current (IC) of 100mA. Operates within a temperature range of -40°C to 125°C, with a collector-emitter saturation voltage of 1.82V. This RoHS compliant component offers a propagation delay and turn-on delay time of 0.5µs.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LP395Z/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-92 |
| Collector Base Voltage (VCBO) | 36V |
| Collector Emitter Breakdown Voltage | 36V |
| Collector Emitter Saturation Voltage | 1.82V |
| Collector Emitter Voltage (VCEO) | 36V |
| Collector-emitter Voltage-Max | 36V |
| Emitter Base Voltage (VEBO) | 20V |
| Height | 5.2mm |
| Input Current | 3uA |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Collector Current | 100mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 100mA |
| Output Voltage | 36V |
| Package Quantity | 1800 |
| Packaging | Bulk |
| Polarity | NPN |
| Propagation Delay | 0.5us |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Turn-On Delay Time | 0.5us |
| Width | 4.19mm |
| RoHS | Compliant |
