Dual-output, positive, fixed linear voltage regulator IC with 1.8V and 2.8V outputs, each capable of 150mA. Features a low dropout voltage of 60mV and high Power Supply Rejection Ratio (PSRR) of 50dB. Operates from a 2.7V to 6V input voltage range with a maximum power dissipation of 250mW. Offers 2.5% accuracy and a quiescent current of 130uA. Surface mount device supplied on tape and reel.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3986TL-2818/NOPB technical specifications.
General
Accuracy
2.5%
Dropout Voltage
60mV
Lead Free
Contains Lead
Min Current Limit
300mA
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
1.8V
Max Power Dissipation
250mW
Max Supply Current
320uA
Mount
Surface Mount
Number of Outputs
2
Number of Regulators
2
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
50dB
Quiescent Current
130uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3986TL-2818/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3986TL-2818/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

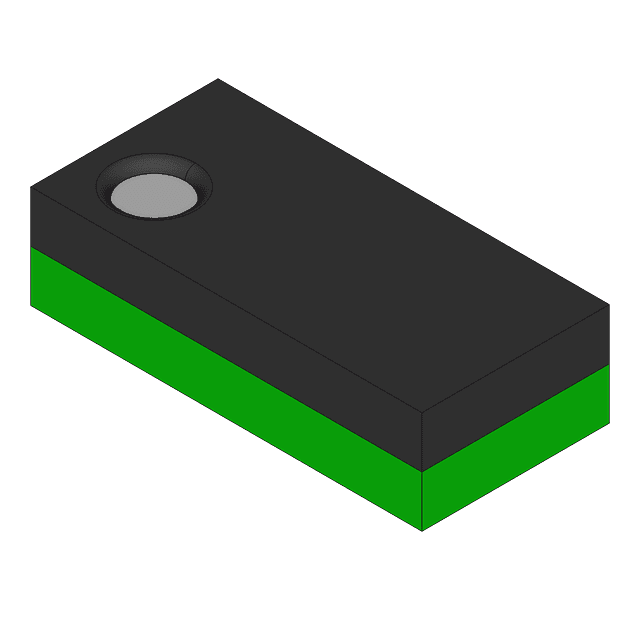

Product Images
