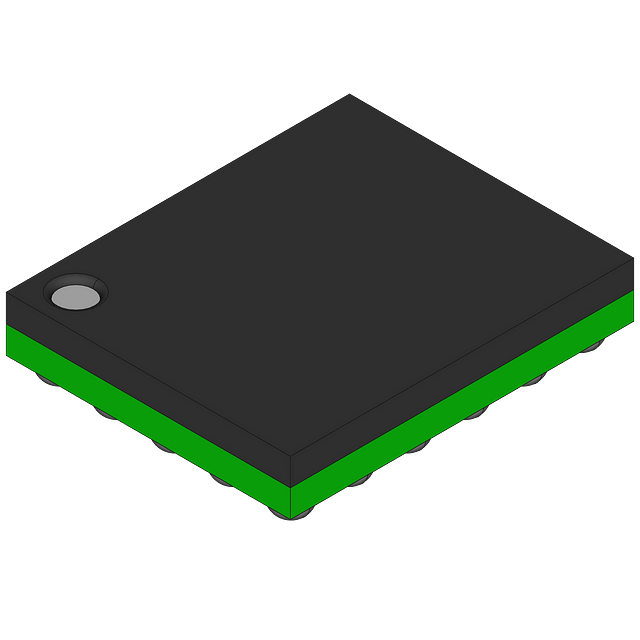

5-output, 5-segment LED driver IC featuring I<sup>2</sup>C programmability and connectivity test. This surface mount device operates from a 3V to 5.5V input voltage range, with a maximum supply current of 850µA. It supports a boost topology with an operating frequency between 1MHz and 2MHz, delivering up to 400mA per output. The component is RoHS compliant and packaged on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LP5527TL/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Frequency | 2MHz |
| Lead Free | Contains Lead |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 850uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.3A |
| Number of Outputs | 5 |
| Number of Segments | 5 |
| Operating Frequency | 1 MHz to 2 MHz |
| Output Current | 400mA |
| Output Voltage | 5.4V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Topology | Boost |
| Width | 2.47mm |
| RoHS | Compliant |
