Automotive 4-channel LED driver featuring PWM dimming and a 2.2MHz operating frequency. This surface mount integrated circuit offers up to 150mA output current per channel with a maximum output voltage of 40V. Designed for automotive applications, it operates from a 3V to 5.5V input voltage range and supports a maximum supply voltage of 48V. The component is housed in a 7.2mm x 7.2mm x 1.45mm HLQFP package, is RoHS compliant, and operates across a -40°C to 125°C temperature range.
Frequency2.2MHz
PackageHLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP8860AQVFPRQ1 technical specifications.
General
| Package/Case | HLQFP |
| Dimming | PWM |
| Frequency | 2.2MHz |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 7.2mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150mA |
| Max Output Voltage | 40V |
| Min Output Voltage | 16V |
| Max Supply Current | 15mA |
| Max Supply Voltage | 48V |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 3.3V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Operating Frequency | 10 MHz |
| Output Current | 150mA |
| Output Current per Channel | 150mA |
| Output Voltage | 48V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Topology | Boost |
| Weight | 0.0063oz |
| Width | 7.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LP8860AQVFPRQ1 Datasheet
Download the complete datasheet for Texas Instruments LP8860AQVFPRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

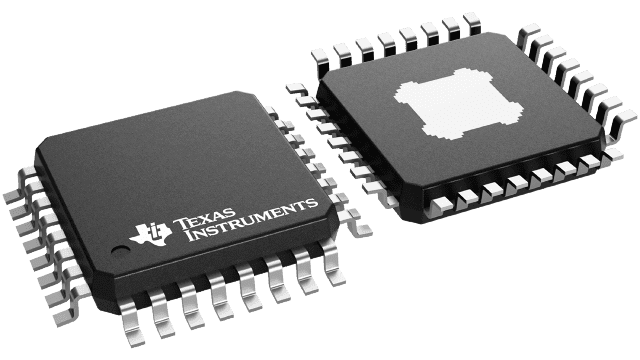

Product Images
