Texas Instruments
MAX208CDBR
5-V Multichannel RS-232 Line Driver/Receiver with +/-15-kV ESD Protection 24-SSOP 0 to 70
PackageSSOP
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX208CDBR technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 120Kbps |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Number of Transceivers | 1 |
| Number of Transmitters | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 20mA |
| Weight | 0.006081oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MAX208CDBR Datasheet
Download the complete datasheet for Texas Instruments MAX208CDBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

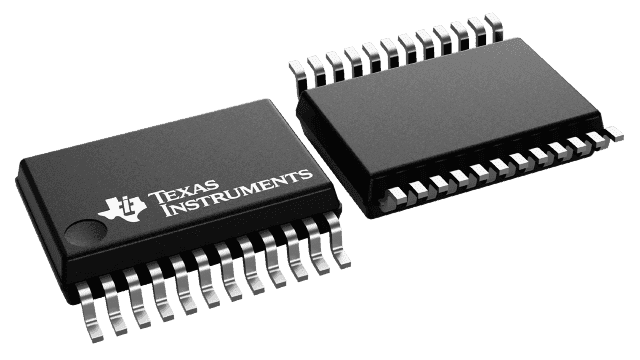

Product Images
