Dual transmitter/receiver for RS-232 serial communication. Features two transmitters and two receivers, supporting full-duplex operation. Operates with a 5V supply voltage, accepting a range from 4.5V to 5.5V. Delivers a data rate of 120Kbps with an output current of 10mA. Packaged in a 16-pin SOIC surface-mount configuration.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX232DW technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 120Kbps |
| Height | 2.35mm |
| Lead Free | Lead Free |
| Length | 10.28mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Output Current | 10mA |
| Output Voltage | 7V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 10mA |
| Weight | 0.014829oz |
| Width | 7.52mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MAX232DW Datasheet
Download the complete datasheet for Texas Instruments MAX232DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

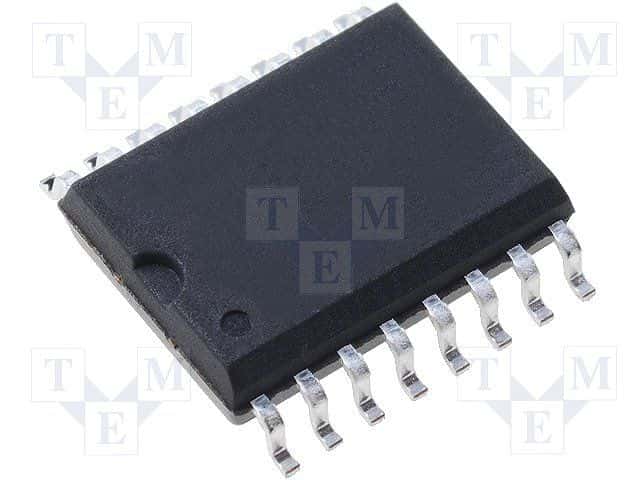

Product Images
