Dual transmitter/receiver bus transceiver for RS-232 communication. Features two transmitters and two receivers, supporting full-duplex operation. Operates with a 5V supply voltage (4.5V to 5.5V) and offers a data rate of 120Kbps. Includes ESD protection and is RoHS compliant. Packaged in a 16-pin PDIP with through-hole mounting.
PackageN
Current10mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments MAX232N technical specifications.
General
Package/Case
N
Data Rate
120Kbps
ESD Protection
Yes
Height
4.57mm
Lead Free
Lead Free
Length
19.3mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
10mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
10mA
Operating Supply Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
10mA
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX232N Datasheet
Download the complete datasheet for Texas Instruments MAX232N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

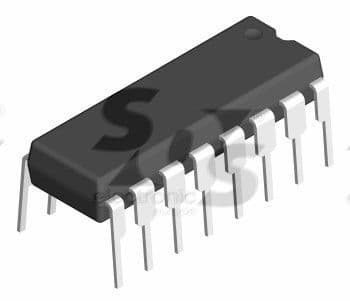

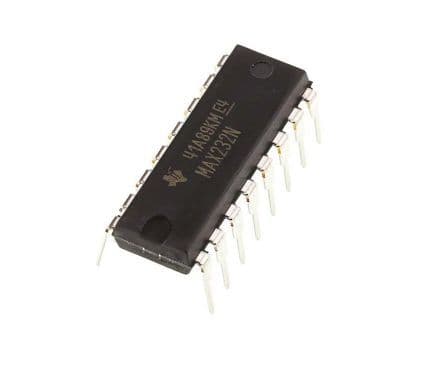

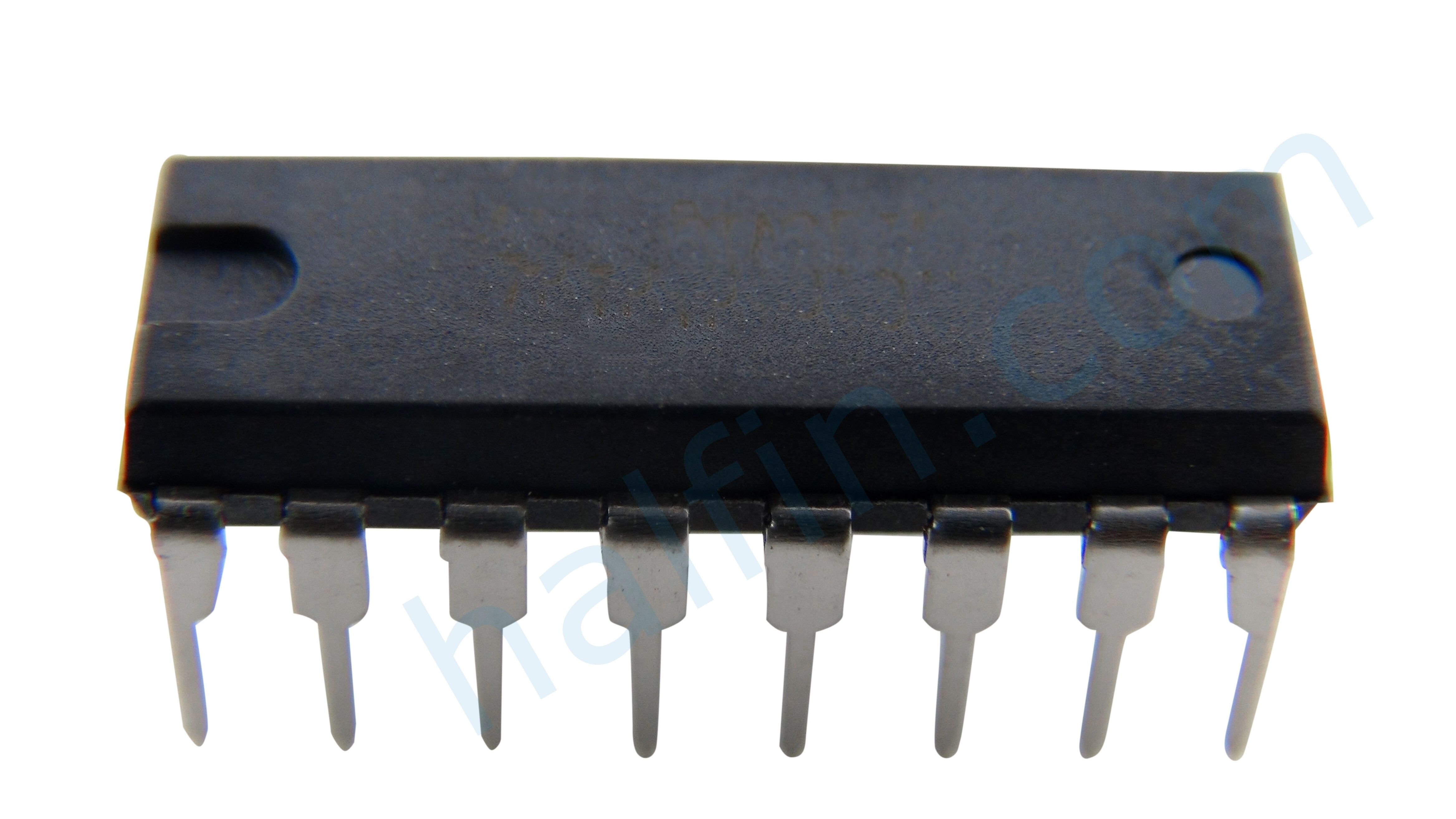

Product Images
