Dual transmitter/receiver interface IC for RS-232 communication. Features two transmitters and two receivers, supporting full-duplex operation. Operates with a supply voltage range of 3V to 5.5V, consuming 1mA of supply current. Offers a data rate of 250Kbps and a wide operating temperature range from -40°C to 85°C. Packaged in a 16-pin SSOP for surface mounting, supplied on tape and reel. RoHS compliant and lead-free.
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232CDBR technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 250Kbps |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Current | 1mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 1mA |
| Weight | 0.004536oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MAX3232CDBR Datasheet
Download the complete datasheet for Texas Instruments MAX3232CDBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

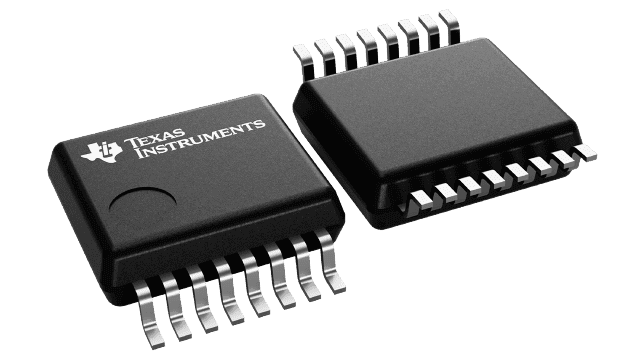

Product Images
