Dual channel RS-232 line driver/receiver with 250Kbps data rate, operating from 3V to 5.5V supply. Features +/-15kV IEC-ESD protection and 300mV receiver hysteresis. This surface mount transceiver, housed in a 16-SSOP package, supports full duplex communication with two drivers and two receivers. RoHS compliant and lead-free, it operates across a -40°C to 85°C temperature range.
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232ECDBR technical specifications.
General
Package/Case
SSOP
Data Rate
250Kbps
Lead Free
Lead Free
Length
6.2mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Receiver Hysteresis
300mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Thickness
1.95mm
Weight
0.004536oz
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3232ECDBR Datasheet
Download the complete datasheet for Texas Instruments MAX3232ECDBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

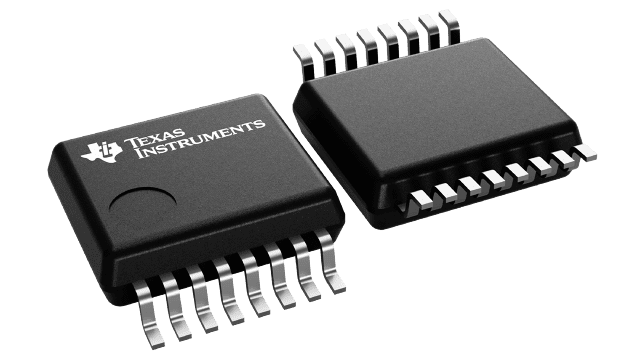

Product Images
