Full-duplex dual transmitter/receiver RS-232 interface IC, featuring 2 drivers and 2 receivers. Operates with a supply voltage range of 3V to 5.5V, typically 5V, and supports data rates up to 250Kbps. This surface mount component is housed in a 16-pin SOIC package with a thickness of 2.35mm. It offers an output current of 60mA and an output voltage of 5.4V, with a maximum operating temperature of 85°C and a minimum of -40°C. RoHS compliant and lead-free.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232IDW technical specifications.
General
Package/Case
SOIC
Data Rate
250Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Output Current
60mA
Output Voltage
5.4V
Package Quantity
40
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Thickness
2.35mm
Weight
0.014829oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3232IDW Datasheet
Download the complete datasheet for Texas Instruments MAX3232IDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

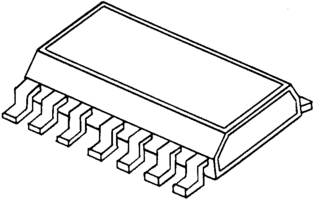

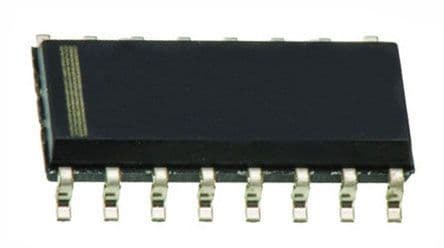

Product Images
