Full-duplex RS-232 transceiver featuring a 250kbps data rate and +/-15kV ESD protection. Operates from a 3V to 5.5V supply voltage with a typical 1mA operating current. Includes 2 drivers and 2 receivers, packaged in a 16-pin SSOP for surface mounting. Designed for wide temperature ranges from -55°C to 125°C, this RoHS compliant component is supplied on tape and reel.
PackageSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232MDBREP technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 250Kbps |
| Height | 1.95mm |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Current | 1mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 2mA |
| Thickness | 1.95mm |
| Weight | 0.004536oz |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MAX3232MDBREP Datasheet
Download the complete datasheet for Texas Instruments MAX3232MDBREP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

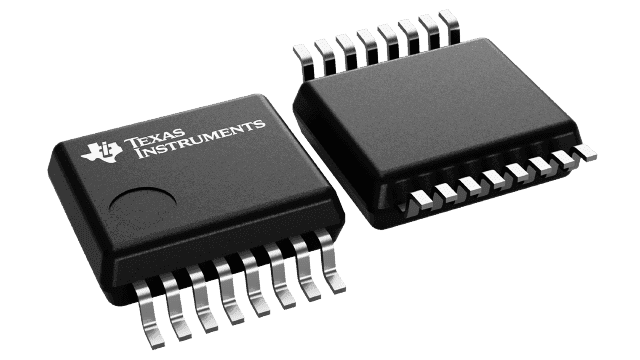

Product Images
