Multichannel RS-232 line driver/receiver for 3V to 5.5V operation, featuring 3 drivers and 5 receivers for full-duplex communication. This surface-mount transceiver offers a 250Kbps data rate and +/-15kV ESD protection. It operates within a 0°C to 70°C temperature range, with a maximum supply current of 1mA and output current of 35mA. The component is RoHS compliant and packaged in a 28-SOIC format.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3243CDW technical specifications.
General
Package/Case
SOIC
Data Rate
250Kbps
ESD Protection
Yes
Height
2.35mm
Lead Free
Lead Free
Length
18mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
1mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
3
Number of I/Os
16
Number of Receivers
5
Number of Transceivers
1
Number of Transmitters
3
Operating Supply Voltage
5V
Output Current
35mA
Output Voltage
13.2V
Package Quantity
20
Packaging
Rail/Tube
Propagation Delay
0.15us
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.025778oz
Width
7.52mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3243CDW Datasheet
Download the complete datasheet for Texas Instruments MAX3243CDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

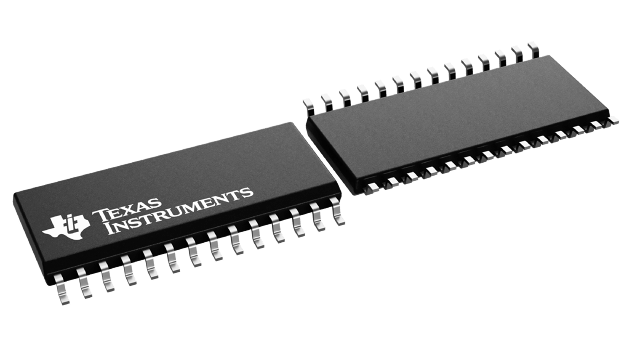

Product Images
