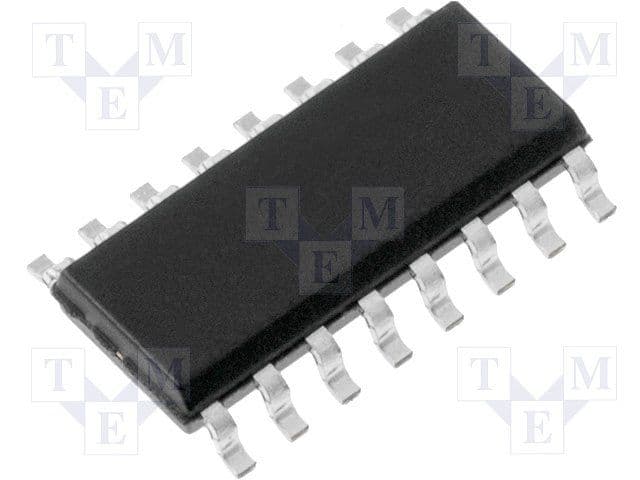

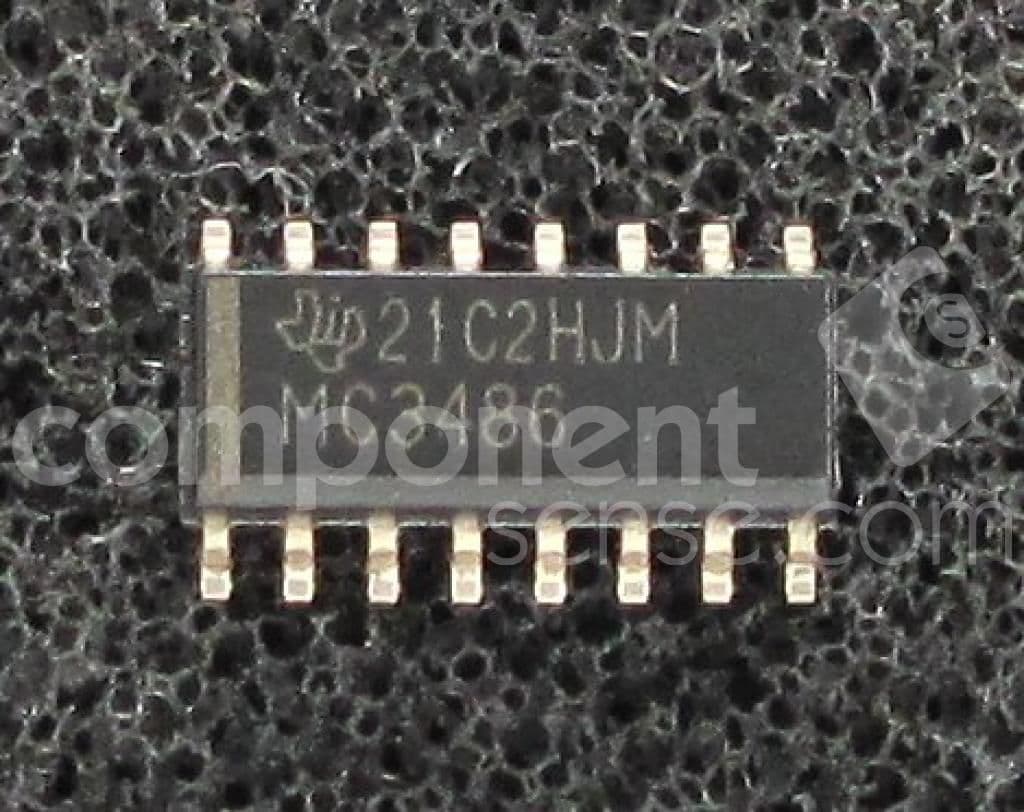

The MC3486D is a quad bus receiver from Texas Instruments, operating within a 4.75-5.25V supply voltage range and a temperature range of 0-70°C. It features a data rate of 10Mbps and a propagation delay of 28ns. The device is packaged in a 16-pin SOIC package and is lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments MC3486D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments MC3486D technical specifications.
| Package/Case | D |
| Current Rating | 85mA |
| Data Rate | 10Mbps |
| Lead Free | Lead Free |
| Logic Function | Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Receivers | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Propagation Delay | 28ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 85mA |
| Termination | SMD/SMT |
| Weight | 0.004998oz |
| RoHS | Compliant |
