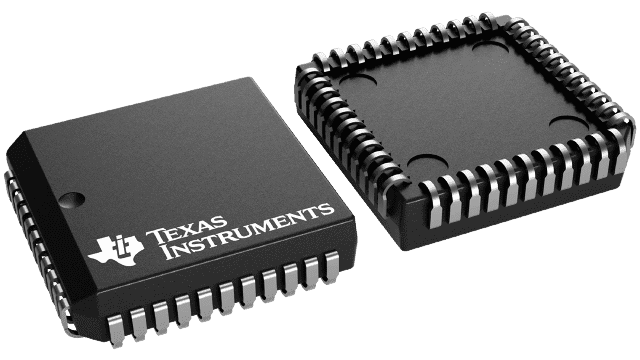

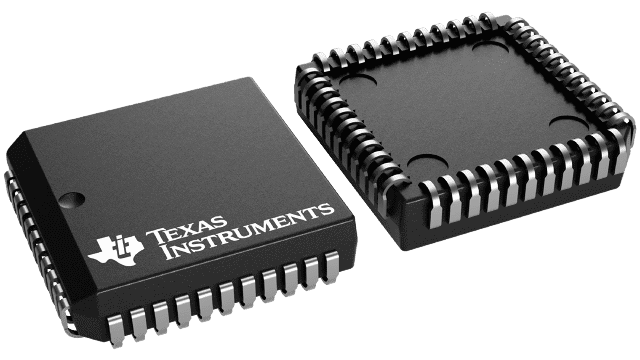

LCD driver IC for segment displays, featuring a 4.5-digit capability and serial interface. Operates with supply voltages from 3V to 10V, drawing a maximum supply current of 10µA and a typical supply current of 40µA. Supports a maximum frequency of 1MHz and offers 33 segments. Packaged in a 44-pin PLCC for surface mounting, this lead-free and RoHS-compliant component operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments MM145453VX/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments MM145453VX/NOPB technical specifications.
| Package/Case | PLCC |
| Display Type | LCD |
| Frequency | 1MHz |
| Height | 4.57mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 16.59mm |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 350mW |
| Max Supply Current | 10uA |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Segments | 33 |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Power Dissipation | 350mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 40uA |
| Thickness | 4.06mm |
| Weight | 0.084185oz |
| Width | 16.59mm |
| RoHS | Compliant |
