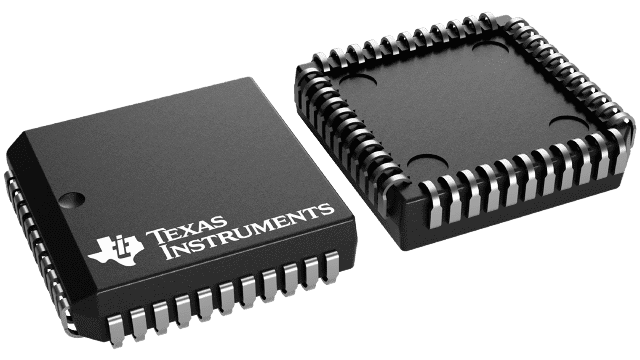

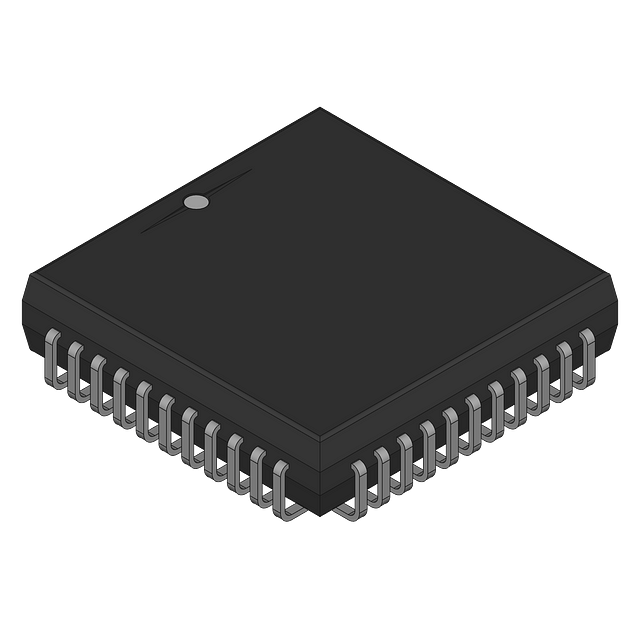

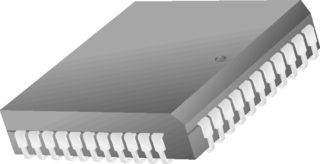

Serial interface LCD driver IC supporting up to 32 segments. Features a 1MHz maximum frequency, 3V to 10V supply voltage range, and 40µA supply current. Operates from -40°C to 85°C with 350mW power dissipation. Surface mountable in a 44-PLCC package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments MM5452V/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments MM5452V/NOPB technical specifications.
| Package/Case | PLCC |
| Display Type | LCD |
| Frequency | 1MHz |
| Height | 4.06mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 16.66mm |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 350mW |
| Max Supply Current | 40uA |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Segments | 32 |
| Output Current | 500mA |
| Output Voltage | 50mV |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 350mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | COPS™ |
| Supply Current | 40uA |
| Weight | 0.084185oz |
| Width | 16.66mm |
| RoHS | Compliant |
