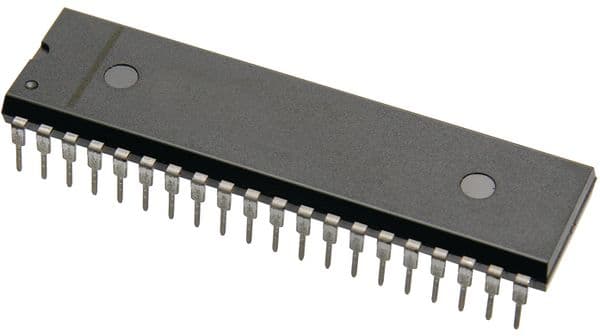

Serial interface LCD driver IC, supporting up to 32 segments. Operates with supply voltages from 3V to 10V and features a maximum supply current of 40µA. This component offers a maximum output current of 500mA and a maximum operating frequency of 1MHz. Packaged in a 40-pin PDIP for through-hole mounting, it functions within an extended temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments MM5453N/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Display Type | LCD |
| Frequency | 1MHz |
| Height | 0.19mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 2.07mm |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 350mW |
| Max Supply Current | 40uA |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Segments | 32 |
| Output Current | 500mA |
| Output Voltage | 50mV |
| Package Quantity | 9 |
| Packaging | Rail/Tube |
| Power Dissipation | 350W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MM5453 |
| Supply Current | 40mA |
| Weight | 0.210004oz |
| Width | 0.55mm |
| RoHS | Compliant |
