16-bit Analog Front End (AFE) with integrated 8051 core, featuring a 33MHz maximum operating frequency. This surface mount device offers 8-bit data bus width, 4KB FLASH memory, and 256B RAM. Interfaces include SPI, Serial, I2C, and USART, with 16 programmable I/O pins and 2 timers/counters. Operates from 2.7V to 5.5V, with a power consumption of 4mW and an operating temperature range of -40°C to 125°C.
Frequency33MHz
PackageVQFN
MountingSurface Mount
Power4mW
Quick Jump:
Technical Specifications
Texas Instruments MSC1202Y2RHHT technical specifications.
General
Access Time
33us
Package/Case
VQFN
Core Architecture
8051
Data Bus Width
8b
Frequency
33MHz
Interface
SPI, Serial, I2C, USART
Lead Free
Lead Free
Max Frequency
33MHz
Max Operating Temperature
125°C
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
16
Number of Programmable I/O
16
Number of Timers/Counters
2
Package Quantity
1
Packaging
Tape and Reel
Power Consumption
4mW
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Sampling Rate
1000S/s
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSC1202Y2RHHT Datasheet
Download the complete datasheet for Texas Instruments MSC1202Y2RHHT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

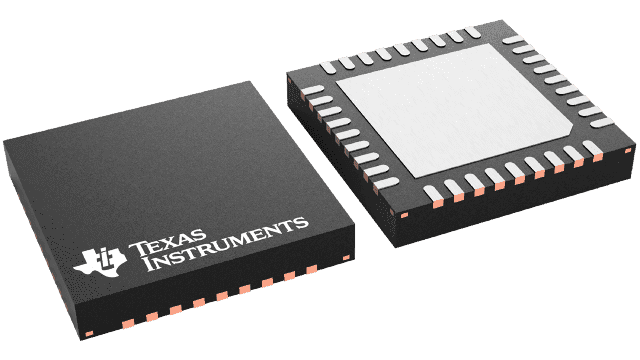

Product Images
