16-bit microcontroller featuring an 8MHz MSP430 core. This integrated circuit offers 1KB of FLASH memory and 128B of SRAM. Includes a timer, comparator, UART interface, and 14 programmable I/O pins. Operates from 1.8V to 3.6V supply voltage, with a temperature range of -40°C to 85°C. Packaged in a 20-SOIC format.
Frequency8MHz
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments MSP430F1101AIDWR technical specifications.
General
Package/Case
SOIC
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Interface
UART
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
1KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of GPIO
14
Number of I/Os
14
Number of Programmable I/O
14
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
2000
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.017662oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F1101AIDWR Datasheet
Download the complete datasheet for Texas Instruments MSP430F1101AIDWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

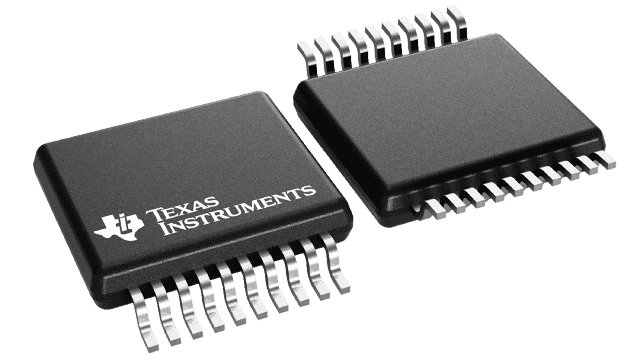

Product Images
