16-bit Ultra-Low-Power Microcontroller featuring an MSP430 core architecture. This MCU offers 2KB of FLASH memory and 128B of RAM, operating at up to 8MHz. It includes a comparator, one timer/counter, and 14 programmable I/O pins. The device supports UART interface and operates from 1.8V to 3.6V supply voltage, with a temperature range of -40°C to 85°C. Packaged in a 20-TVSOP, this RoHS compliant component is ideal for low-power applications.
Frequency8MHz
PackageTFSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F1111AIDGVR technical specifications.
General
Package/Case
TFSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Interface
UART
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
2KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of GPIO
14
Number of I/Os
14
Number of Programmable I/O
14
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
2000
Packaging
Tape and Reel
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.002123oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F1111AIDGVR Datasheet
Download the complete datasheet for Texas Instruments MSP430F1111AIDGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

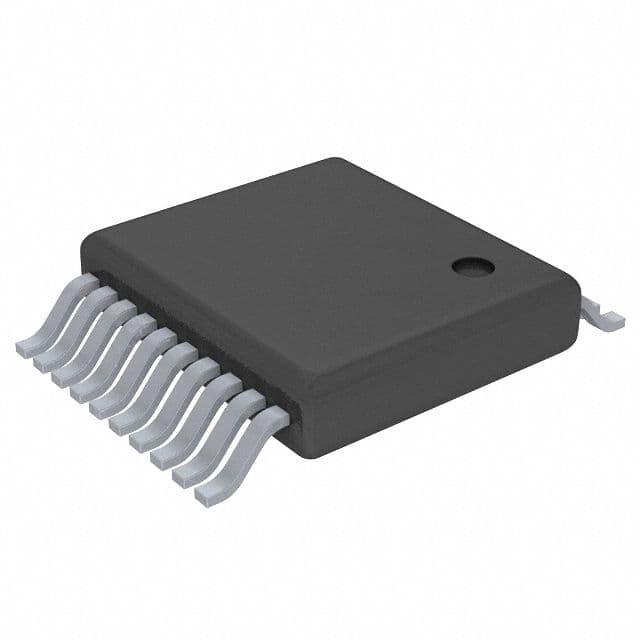

Product Images
