16-bit microcontroller operating at 8MHz, featuring 4KB FLASH memory and 256B SRAM. Includes a 16-bit address and data bus, 14 programmable I/O pins, and 3 PWM channels. Integrated peripherals include a watchdog timer, POR, and a UART interface. Housed in a 20-TSSOP package, this RoHS compliant component operates from 1.8V to 3.6V across a temperature range of -40°C to 85°C.
Frequency8MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F1121AIPW technical specifications.
General
Access Time
8us
Address Bus Width
16b
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Height
1.05mm
Interface
UART
Lead Free
Lead Free
Length
6.6mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of GPIO
14
Number of I/Os
14
Number of Programmable I/O
14
Number of PWM Channels
3
Number of Timers/Counters
1
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
70
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.002716oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F1121AIPW Datasheet
Download the complete datasheet for Texas Instruments MSP430F1121AIPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

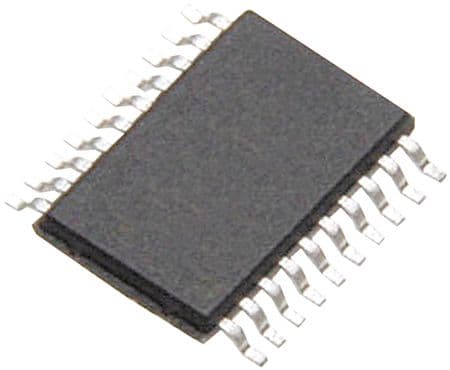

Product Images
