16-bit microcontroller featuring an 8 MHz MSP430 core. This MCU offers 4KB of FLASH memory and 256B of SRAM. Integrated peripherals include a 10-bit ADC with 8 channels, one timer/counter, and one UART channel, alongside SPI and USART interfaces. The device operates from 1.8V to 3.6V and is housed in a 28-SOIC package, suitable for temperatures from -40°C to 85°C.
Frequency8MHz
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments MSP430F1222IDWR technical specifications.
General
Package/Case
SOIC
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Interface
SPI, UART, USART
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
22
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
1
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.025778oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F1222IDWR Datasheet
Download the complete datasheet for Texas Instruments MSP430F1222IDWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

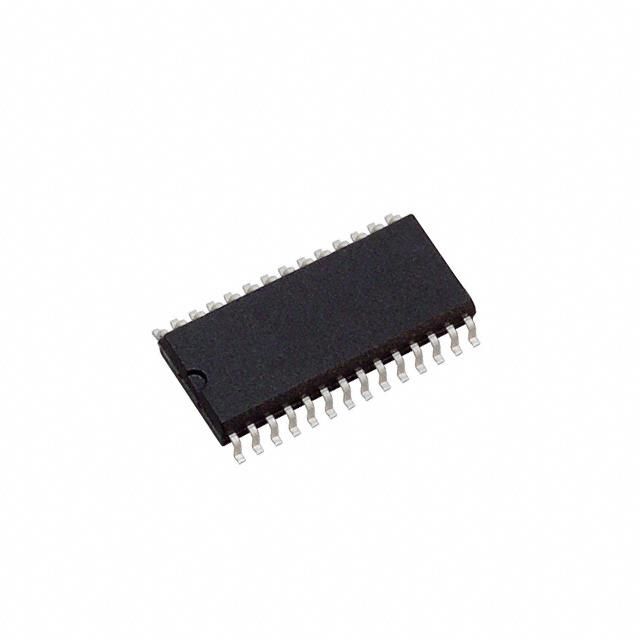

Product Images
