16-bit microcontroller featuring an 8 MHz MSP430 core, 4KB FLASH memory, and 256B SRAM. Includes 8-channel 10-bit ADC, 3 PWM channels, and 1 SPI/UART interface. Operates from 1.8V to 3.6V supply, with an operating temperature range of -40°C to 85°C. Packaged in a 28-TSSOP, this RoHS compliant MCU offers 22 programmable I/Os and a watchdog timer.
Frequency8MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F1222IPWR technical specifications.
General
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Height
1.05mm
Interface
SPI, UART, USART
Lead Free
Lead Free
Length
9.8mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
22
Number of I/Os
22
Number of I2C Channels
0
Number of Programmable I/O
22
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
1
Number of UART Channels
1
Number of USB Channels
0
Oscillator Type
Internal
Package Quantity
2000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.004145oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F1222IPWR Datasheet
Download the complete datasheet for Texas Instruments MSP430F1222IPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

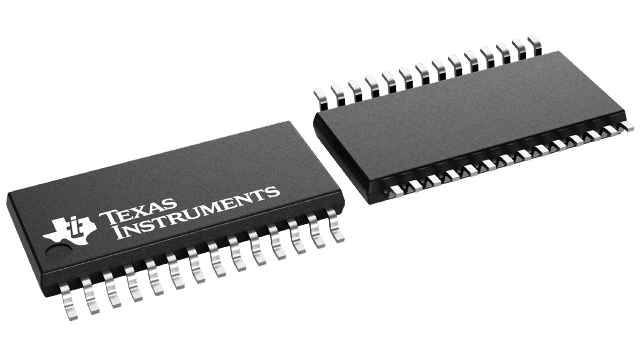

Product Images
