Texas Instruments
MSP430F1222IRHBT
8MHz 16-bit MCU, 4KB FLASH, 256B SRAM, 8-ch 10-bit ADC, SPI/UART, VQFN
16-bit microcontroller featuring an 8 MHz core, 4KB FLASH memory, and 256B SRAM. Includes an 8-channel 10-bit Analog-to-Digital Converter (ADC), one timer/counter, and one UART channel. Offers SPI and UART interfaces, with 22 programmable I/O pins. Operates from 1.8V to 3.6V supply, within a -40°C to 85°C temperature range, housed in a 32-VQFN package.
Frequency8MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430F1222IRHBT technical specifications.
General
Access Time
8us
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Height
0.95mm
Interface
SPI, UART, USART
Lead Free
Lead Free
Length
5.15mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
22
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
1
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.002547oz
Width
5.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F1222IRHBT Datasheet
Download the complete datasheet for Texas Instruments MSP430F1222IRHBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

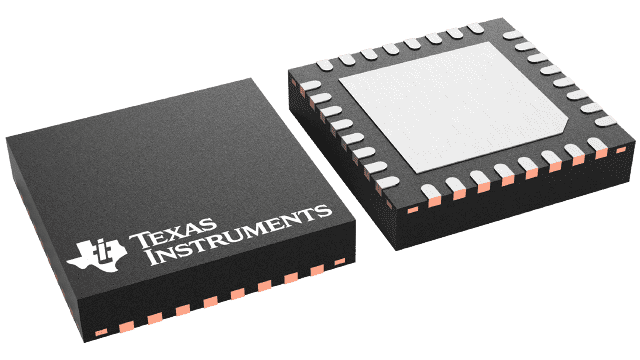

Product Images
