16-bit microcontroller featuring an 8 MHz MSP430 core. Offers 4KB FLASH memory and 256B SRAM. Includes one timer, a comparator, and SPI/UART interfaces. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C. Packaged in a 28-TSSOP, tape and reel.
Frequency8MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F122IPWR technical specifications.
General
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Interface
SPI, UART, USART
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of GPIO
22
Number of I/Os
22
Number of Programmable I/O
22
Number of Timers/Counters
1
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
2000
Packaging
Tape and Reel
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.004145oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F122IPWR Datasheet
Download the complete datasheet for Texas Instruments MSP430F122IPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

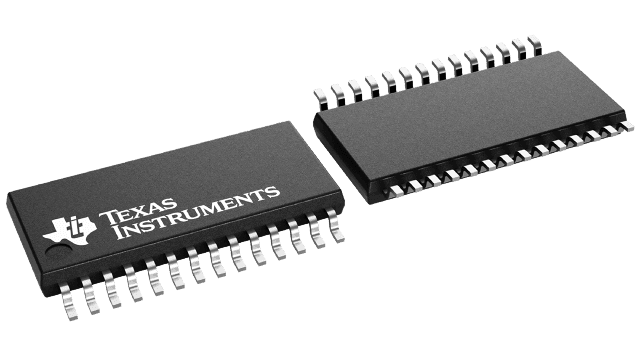

Product Images
