Texas Instruments
MSP430F135IPM
16-bit MCU, 8MHz, 16KB FLASH, 512B SRAM, 8-ch 12-bit ADC, SPI/UART, 64-LQFP
8 MHz microcontroller featuring a 16-bit core architecture with 16KB of FLASH memory and 512B of SRAM. This integrated circuit offers 8 analog-to-digital converter channels, a comparator, and supports SPI and UART interfaces. It operates within a temperature range of -40°C to 85°C, with a supply voltage from 1.8V to 3.6V, and is housed in a 64-pin LQFP package. Additional features include 48 programmable I/Os, two timers/counters, and a watchdog timer.
Frequency8MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F135IPM technical specifications.
General
Access Time
8us
Address Bus Width
16b
Package/Case
LQFP
Core Architecture
MSP430
Data Bus Width
16b
Density
16KB
Frequency
8MHz
Height
1.45mm
Interface
SPI, UART, USART
Lead Free
Lead Free
Length
10.2mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of Bits
16
Number of GPIO
48
Number of I/Os
48
Number of Programmable I/O
48
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.012088oz
Width
10.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F135IPM Datasheet
Download the complete datasheet for Texas Instruments MSP430F135IPM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

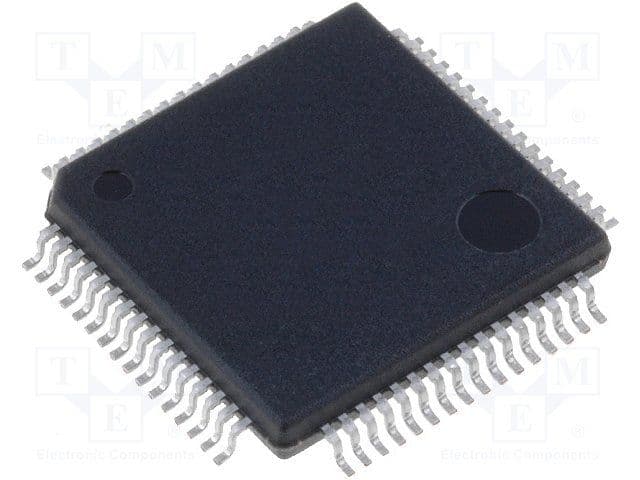

Product Images
