8 MHz RISC microcontroller featuring 48KB FLASH and 2KB SRAM. Integrated 12-bit ADC with 8 channels, comparator, and 2 SPI/UART interfaces. Offers 48 programmable I/Os, 2 timers/counters, and internal oscillator. Packaged in a 64-LQFP (10.2mm x 10.2mm x 1.45mm) for SMD/SMT termination, operating from 1.8V to 3.6V supply voltage across a -40°C to 85°C temperature range.
Frequency8MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F148IPM technical specifications.
General
Access Time
8us
Address Bus Width
16b
Package/Case
LQFP
Core Architecture
RISC
Data Bus Width
16b
Density
48KB
Frequency
8MHz
Height
1.45mm
Interface
SPI, UART, USART
Lead Free
Lead Free
Length
10.2mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
48KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
48
Number of I/Os
48
Number of Programmable I/O
48
Number of SPI Channels
2
Number of Timers/Counters
2
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430x1xx
Termination
SMD/SMT
Watchdog Timer
Yes
Weight
0.012088oz
Width
10.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F148IPM Datasheet
Download the complete datasheet for Texas Instruments MSP430F148IPM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

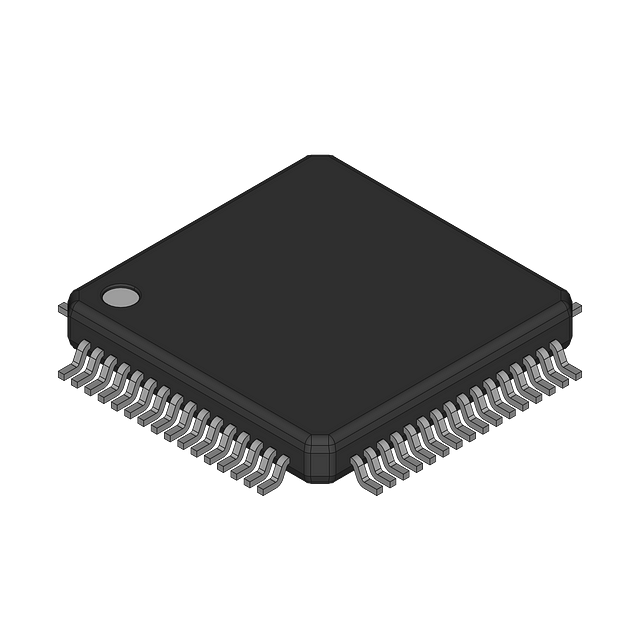

Product Images
