16-bit microcontroller featuring a 16MHz core frequency, 8KB FLASH memory, and 256B SRAM. Includes a timer, comparator, and 16 programmable I/O pins. Offers 1 UART interface and 3 PWM channels. Operates within a 1.8V to 3.6V supply voltage range and a -40°C to 85°C temperature range, housed in a 20-SOIC package.
Frequency16MHz
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2131IDW technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Height
2.35mm
Interface
UART
Lead Free
Lead Free
Length
13mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of GPIO
16
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
3
Number of Timers/Counters
1
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.017662oz
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2131IDW Datasheet
Download the complete datasheet for Texas Instruments MSP430F2131IDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

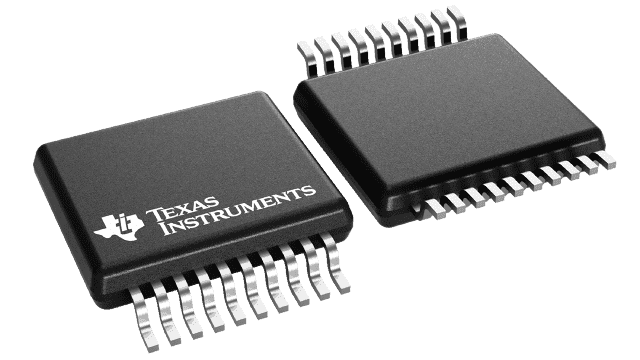

Product Images
