16 MHz, 16-bit microcontroller featuring 8KB FLASH and 256B SRAM. This MCU offers 16 programmable I/Os, one UART interface, and one timer/counter. Integrated peripherals include brown-out detect/reset, POR, PWM (3 channels), and a watchdog timer. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C, housed in a 20-TSSOP package.
Frequency16MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2131IPW technical specifications.
General
Address Bus Width
16b
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Height
1.05mm
Interface
UART
Lead Free
Lead Free
Length
6.6mm
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of GPIO
16
Number of I/Os
16
Number of Programmable I/O
16
Number of PWM Channels
3
Number of Timers/Counters
1
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
70
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.002716oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2131IPW Datasheet
Download the complete datasheet for Texas Instruments MSP430F2131IPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

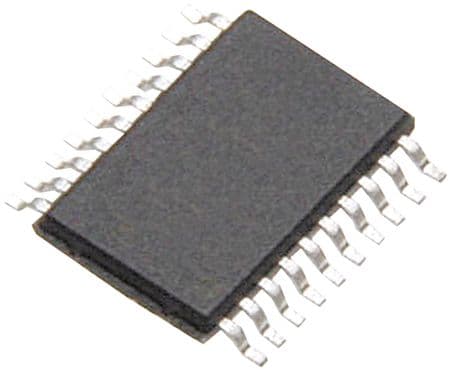

Product Images
