16-bit microcontroller featuring an MSP430 core operating at up to 16MHz. This integrated circuit offers 8KB of FLASH memory and 256 Bytes of SRAM, along with 16 programmable I/O pins. Integrated peripherals include a timer, comparator, UART interface, Brown-out Detect/Reset, POR, PWM, and a watchdog timer. The component is housed in a 20-pin TFSOP package, suitable for surface mount technology, and operates within a temperature range of -40°C to 85°C with supply voltages from 1.8V to 3.6V.
Frequency16MHz
PackageTFSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2131TDGV technical specifications.
General
Package/Case
TFSOP
Core Architecture
MSP430
Data Bus Width
16b
Density
8KB
Frequency
16MHz
Interface
UART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of GPIO
16
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
90
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Termination
SMD/SMT
Watchdog Timer
Yes
Weight
0.002123oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2131TDGV Datasheet
Download the complete datasheet for Texas Instruments MSP430F2131TDGV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

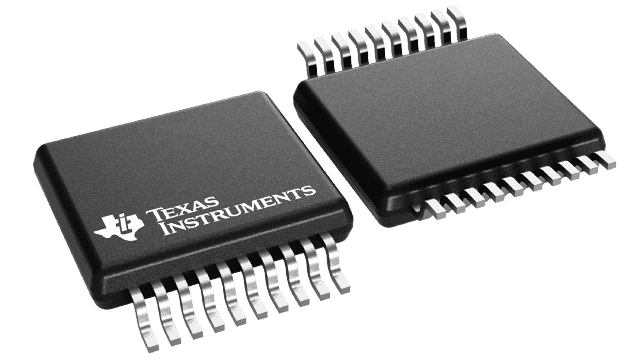

Product Images
