16-bit microcontroller featuring a 16MHz core frequency and 8KB of FLASH memory, complemented by 256B of SRAM. Integrated peripherals include a timer, comparator, UART interface, Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Operates across a wide temperature range of -40°C to 85°C with supply voltages from 1.8V to 3.6V. Housed in a 20-SOIC package with 16 programmable I/O pins.
Frequency16MHz
PackageSOIC
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments MSP430F2131TDWR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments MSP430F2131TDWR technical specifications.
General
| Access Time | 16us |
| Package/Case | SOIC |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 16MHz |
| Interface | UART |
| Lead Free | Lead Free |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of GPIO | 16 |
| Number of I/Os | 16 |
| Number of Programmable I/O | 16 |
| Number of Timers/Counters | 1 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | MSP430F2xx |
| Watchdog Timer | Yes |
| Weight | 0.017662oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F2131TDWR Datasheet
Download the complete datasheet for Texas Instruments MSP430F2131TDWR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

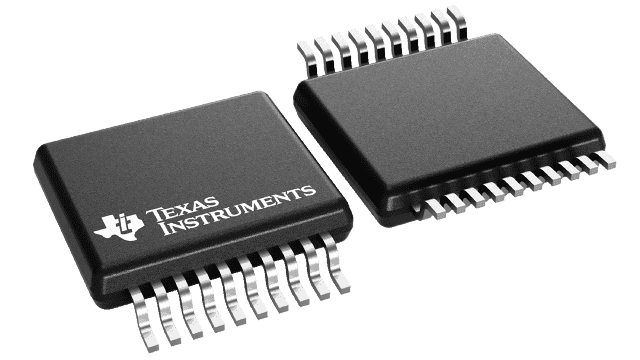

Product Images
