16-bit microcontroller featuring a 16MHz MSP430 core, 8KB FLASH memory, and 512B SRAM. Includes an 8-channel 10-bit Analog-to-Digital Converter (ADC), comparator, and multiple communication interfaces such as I2C, SPI, and UART. Operates from 1.8V to 3.6V supply voltage, with an operating temperature range of -40°C to 85°C. Equipped with 24 programmable I/Os, two timers, and integrated peripherals like Brown-out Detect/Reset and a Watchdog Timer. Packaged in a 32-VQFN for surface-mount applications.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2132TRHBR technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
24
Number of I/Os
24
Number of Programmable I/O
24
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.002533oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2132TRHBR Datasheet
Download the complete datasheet for Texas Instruments MSP430F2132TRHBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

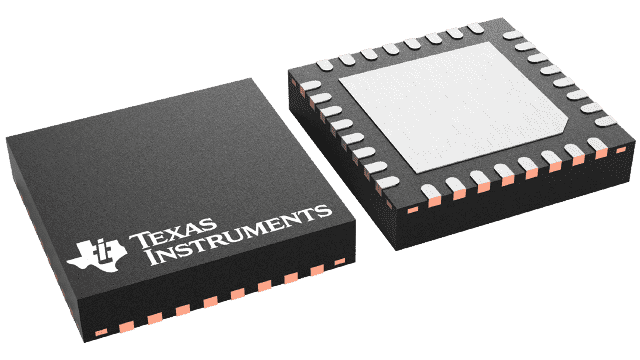

Product Images
