Texas Instruments
MSP430F2252IRHAT
16MHz 16b MCU, 16KB FLASH, 512B SRAM, 12-ch 10-bit ADC, I2C/SPI/UART
16-bit microcontroller featuring a 16MHz core clock speed and 16KB of FLASH memory. Includes 512B SRAM, 12-channel 10-bit ADC, and multiple communication interfaces: I2C, SPI, UART, IrDA, USART, LIN, and SCI. Offers 32 programmable I/O pins, 2 timers/counters, 3 PWM channels, and integrated peripherals like Brown-out Detect/Reset, POR, and Watchdog Timer. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 105°C, housed in a 40-VQFN package.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2252IRHAT technical specifications.
General
Access Time
16us
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Length
6.15mm
Max Frequency
16MHz
Max Operating Temperature
105°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
12
Number of ADC Channels
12
Number of GPIO
32
Number of I/Os
32
Number of I2C Channels
1
Number of Programmable I/O
32
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.003668oz
Width
6.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2252IRHAT Datasheet
Download the complete datasheet for Texas Instruments MSP430F2252IRHAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

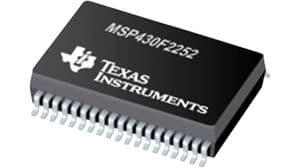

Product Images
