Texas Instruments
MSP430F2254IRHAT
16MHz 16b MCU, 16KB FLASH, 512B SRAM, 12-ch 10-bit ADC, I2C/SPI/UART
16-bit microcontroller featuring a 16MHz core, 16KB FLASH memory, and 512B SRAM. Integrated peripherals include a 10-bit ADC with 12 channels, 2 op-amps, and 2 timers/counters. Supports I2C, SPI, UART, and other serial interfaces. Operates from 1.8V to 3.6V within a -40°C to 105°C temperature range, housed in a 40-VQFN EP package.
Frequency16MHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2254IRHAT technical specifications.
General
Access Time
16us
Package/Case
VQFN EP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
105°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
12
Number of ADC Channels
12
Number of GPIO
32
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.003668oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2254IRHAT Datasheet
Download the complete datasheet for Texas Instruments MSP430F2254IRHAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

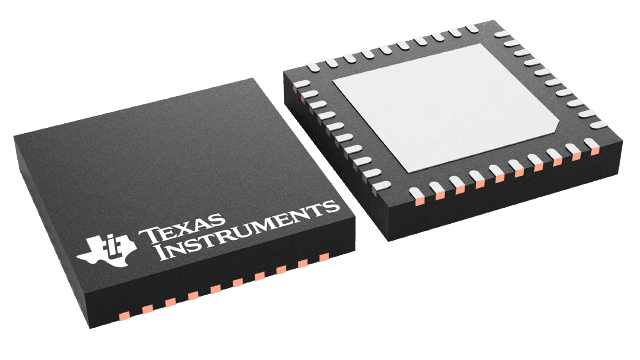

Product Images
