16-bit microcontroller featuring a 16 MHz core, 16KB FLASH memory, and 2KB SRAM. Integrated peripherals include a comparator, hardware multiplier, and multiple communication interfaces such as I2C, SPI, and UART. Offers 32 programmable I/O pins, two timers/counters, and a watchdog timer. Operates from 1.8V to 3.6V supply voltage and is available in a 40-VQFN package, suitable for temperatures from -40°C to 105°C.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2350IRHAR technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of GPIO
32
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
2500
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.003668oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2350IRHAR Datasheet
Download the complete datasheet for Texas Instruments MSP430F2350IRHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

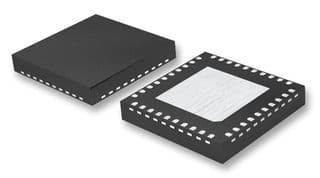

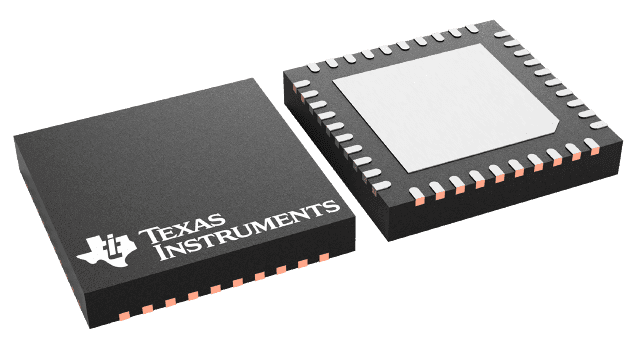

Product Images
