Texas Instruments
MSP430F2417TPM
16MHz 16-bit MCU, 92KB Flash, 8KB SRAM, 12-bit ADC, I2C/SPI/UART, 64-LQFP
16-bit microcontroller operating at 16MHz, featuring 92KB of FLASH memory and 8KB of SRAM. This MCU includes an 8-channel, 12-bit Analog-to-Digital Converter (ADC), a comparator, and hardware multiplier. Connectivity is supported via multiple I2C, SPI, and UART interfaces, along with IrDA, USART, and LIN/SCI. The component is housed in a 64-pin LQFP package, suitable for surface-mount technology, and operates within a temperature range of -40°C to 105°C. Integrated peripherals include brown-out detect/reset, power-on reset (POR), PWM, DMA, and a watchdog timer.
Frequency16MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2417TPM technical specifications.
General
Package/Case
LQFP
Core Architecture
MSP430
Data Bus Width
16b
Density
92KB
Frequency
16MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Length
10.2mm
Max Frequency
16MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
92KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
48
Number of I/Os
48
Number of I2C Channels
2
Number of Programmable I/O
64
Number of SPI Channels
4
Number of Timers/Counters
2
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Termination
SMD/SMT
Watchdog Timer
Yes
Weight
0.012088oz
Width
10.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2417TPM Datasheet
Download the complete datasheet for Texas Instruments MSP430F2417TPM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

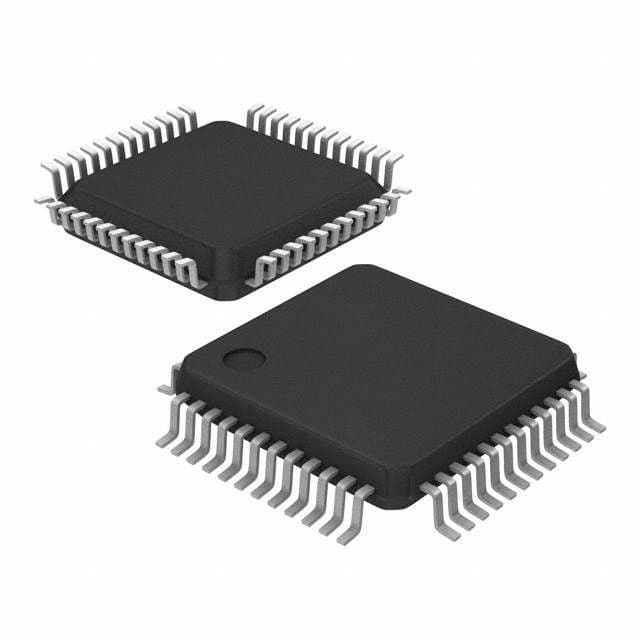

Product Images
