16-bit microcontroller operating at 16MHz, featuring 116KB FLASH and 8KB SRAM. This MCU includes a 12-bit ADC with 8 channels, dual 12-bit DACs, and multiple communication interfaces such as I2C, SPI, and UART. Integrated peripherals include a hardware multiplier, DMA, and a watchdog timer. Packaged in a 64-LQFP, it operates from -40°C to 105°C with a supply voltage range of 1.8V to 3.6V.
Frequency16MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2618TPMR technical specifications.
General
Package/Case
LQFP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Height
1.4mm
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Length
10mm
Max Frequency
16MHz
Max Operating Temperature
105°C
Memory Size
116KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
48
Number of I/Os
48
Number of Programmable I/O
64
Number of Timers/Counters
2
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.012088oz
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2618TPMR Datasheet
Download the complete datasheet for Texas Instruments MSP430F2618TPMR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

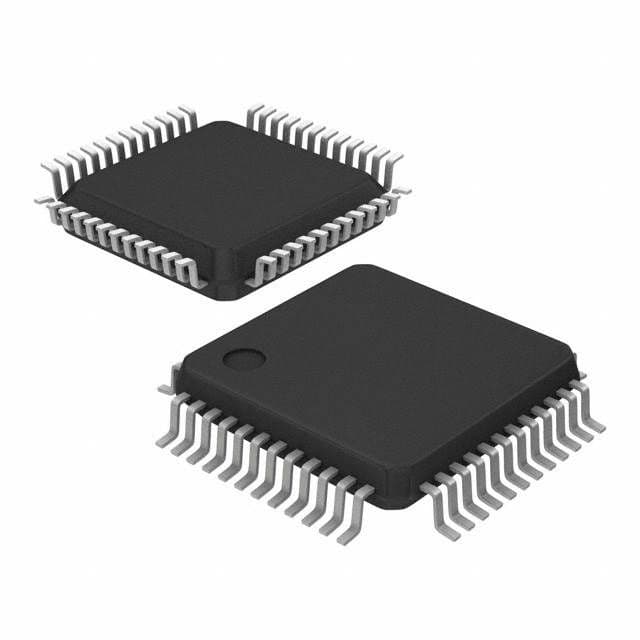

Product Images
