16-bit microcontroller featuring an 8 MHz core, 16KB FLASH memory, and 512B SRAM. Integrated peripherals include two timers/counters, a comparator, UART interface, and support for a 96-segment LCD. Operates from 1.8V to 3.6V supply, with 48 programmable I/Os and an internal oscillator. Packaged in a 64-VQFN on tape and reel, this RoHS compliant component is suitable for operation between -40°C and 85°C.
Frequency8MHz
PackageVQFN
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments MSP430F415IRTDR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments MSP430F415IRTDR technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 8MHz |
| Interface | UART |
| Lead Free | Lead Free |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Number of GPIO | 48 |
| Number of I/Os | 48 |
| Number of Programmable I/O | 48 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Series | MSP430x4xx |
| Watchdog Timer | Yes |
| Weight | 0.007277oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F415IRTDR Datasheet
Download the complete datasheet for Texas Instruments MSP430F415IRTDR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

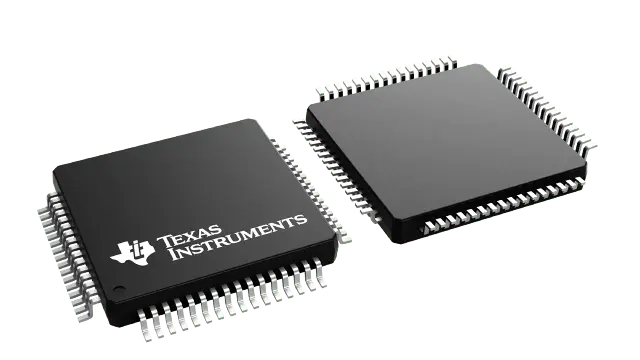

Product Images
