Texas Instruments
MSP430F47186IPZR
16-bit MSP430 MCU, 16MHz, 6 Sigma-Delta ADCs, 116KB Flash, 8KB RAM, LQFP
16-bit microcontroller featuring a 16MHz MSP430 core, 116KB Flash memory, and 8KB RAM. Includes 6 Sigma-Delta Analog-to-Digital Converters and a 160-segment LCD driver. Offers extensive connectivity with I2C, SPI, IrDA, UART, USART, LIN, and SCI interfaces. Equipped with 68 programmable I/Os, 2 timers, DMA, and integrated peripherals like POR, PWM, WDT, and brown-out detection. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C, packaged in a 100-LQFP.
Frequency16MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F47186IPZR technical specifications.
General
Package/Case
LQFP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
116KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
6
Number of GPIO
68
Number of I/Os
68
Number of Programmable I/O
68
Number of Timers/Counters
2
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
MSP430x4xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F47186IPZR Datasheet
Download the complete datasheet for Texas Instruments MSP430F47186IPZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

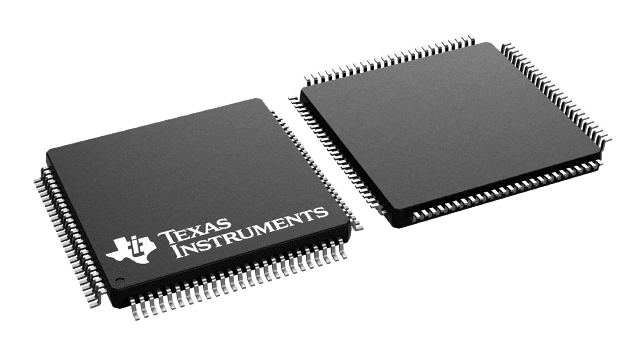

Product Images
