16-bit microcontroller operating at up to 25MHz, featuring 16KB Flash memory and 8KB SRAM. This MCU offers 8 channels of 10-bit Analog-to-Digital conversion, a hardware multiplier, and multiple communication interfaces including UART, SPI, I2C, and USB. It includes 31 programmable I/O pins, 4 timers/counters, and integrated peripherals such as DMA and a watchdog timer. Packaged in a 48-pin LQFP, this RoHS compliant component operates within a temperature range of -40°C to 85°C.
Frequency25MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F5508IPTR technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 25MHz |
| Interface | I2C, SPI, USB, IrDA, UART, USART, LIN, SCI |
| Lead Free | Lead Free |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 8 |
| Number of ADC Channels | 8 |
| Number of GPIO | 47 |
| Number of I/Os | 31 |
| Number of Programmable I/O | 31 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 8KB |
| RoHS Compliant | Yes |
| Series | MSP430F5xx |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F5508IPTR Datasheet
Download the complete datasheet for Texas Instruments MSP430F5508IPTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

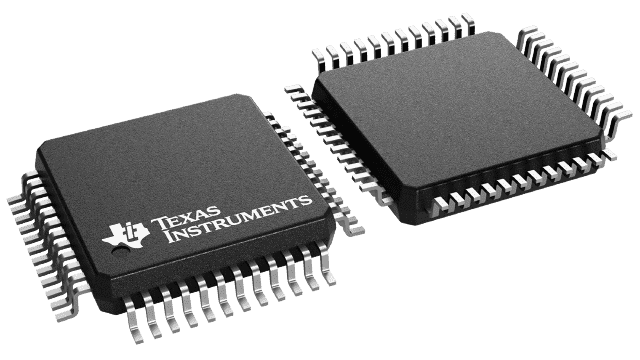

Product Images
