16-bit microcontroller operating at up to 25MHz, featuring 128KB Flash memory and 10KB SRAM. Integrated peripherals include a 12-bit ADC with 16 channels, a comparator, DMA, hardware multiplier, and multiple communication interfaces such as UART, SPI, I2C, and USB. This device offers 47 GPIO pins, 4 timers/counters, and 2 UART channels, with support for internal oscillators. Packaged in a 64-DSBGA, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency25MHz
PackageBGA
Quick Jump:
Technical Specifications
Texas Instruments MSP430F5528IYFFR technical specifications.
General
| Package/Case | BGA |
| Core Architecture | CPUXV2 |
| Data Bus Width | 16b |
| Frequency | 25MHz |
| Interface | I2C, SPI, IrDA, UART, USART, LIN, SCI, USB |
| Lead Free | Lead Free |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 16 |
| Number of ADC Channels | 16 |
| Number of GPIO | 47 |
| Number of I/Os | 47 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 10KB |
| RoHS Compliant | Yes |
| Series | MSP430F5xx |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F5528IYFFR Datasheet
Download the complete datasheet for Texas Instruments MSP430F5528IYFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

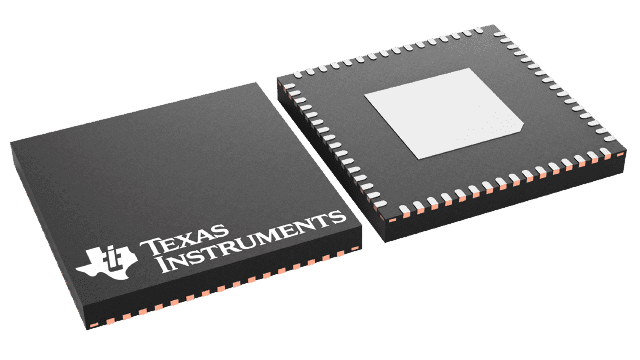

Product Images
