16-bit microcontroller operating at 25MHz, featuring 128KB Flash memory and 8KB SRAM. This MCU includes a 12-bit Analog-to-Digital Converter with 16 channels, a comparator, and DMA for efficient data transfer. Connectivity options comprise 2 UART channels, SPI, I2C, and USB support, alongside a hardware multiplier. Packaged in an 80-pin LQFP with a temperature range of -40°C to 85°C, this RoHS compliant component offers 63 GPIO pins and a watchdog timer.
Frequency25MHz
PackageLQFP
Quick Jump:

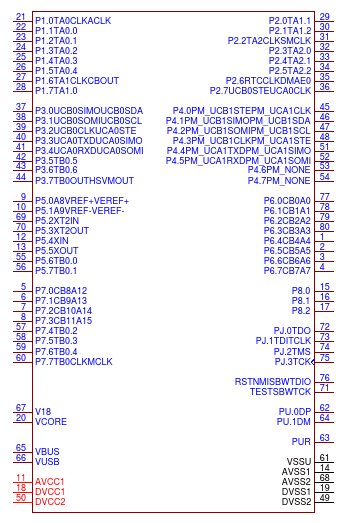

Technical Specifications
Texas Instruments MSP430F5529IPNR technical specifications.
General
Package/Case
LQFP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
25MHz
Height
1.6mm
Lead Free
Lead Free
Length
12mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage (DC)
1.8V
Number of A/D Converters
16
Number of ADC Channels
16
Number of GPIO
63
Number of UART Channels
2
Operating Supply Voltage
3.6V
Package Quantity
1000
Packaging
Cut Tape
RAM Size
8KB
RoHS Compliant
Yes
Series
MSP430F5529
Thickness
1.4mm
Watchdog Timer
Yes
Weight
0.022575oz
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F5529IPNR Datasheet
Download the complete datasheet for Texas Instruments MSP430F5529IPNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
