16-bit microcontroller operating at 20MHz, featuring 256KB Flash memory and 16KB SRAM. Integrated peripherals include a comparator, DMA, UART, SPI, I2C, USB, and timers. Offers 74 GPIO pins and operates from 1.8V to 3.6V supply voltage, with a temperature range of -40°C to 85°C. This lead-free, RoHS compliant component is housed in an LQFP package.
Frequency20MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F5632IPZ technical specifications.
General
Package/Case
LQFP
Core Architecture
CPUXV2
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, SCI, LIN
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
16
Number of ADC Channels
16
Number of GPIO
74
Number of I/Os
74
Number of Programmable I/O
74
Number of Timers/Counters
4
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
18KB
RoHS Compliant
Yes
Series
MSP430F5xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F5632IPZ Datasheet
Download the complete datasheet for Texas Instruments MSP430F5632IPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

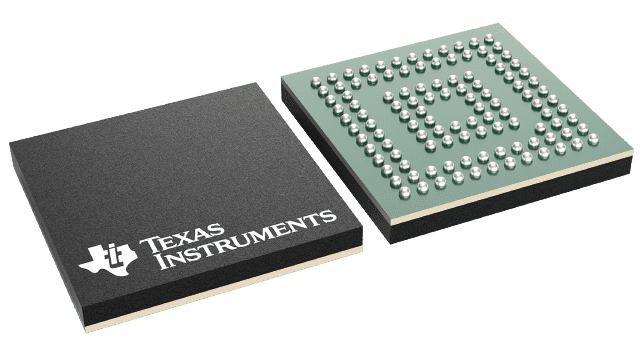

Product Images
