Texas Instruments
MSP430F5632IPZR
16-bit MCU, 20MHz, 256KB Flash, 18KB RAM, USB, UART/SPI/I2C, 100-LQFP
16-bit microcontroller operating at up to 20MHz, featuring 256KB Flash and 18KB SRAM. Integrated peripherals include a comparator, DMA, multiple UART, SPI, I2C, and USB interfaces, along with four timers and 16 analog-to-digital converter channels. This LQFP-packaged MCU offers 74 GPIO pins and operates across a -40°C to 85°C temperature range with supply voltages from 1.8V to 3.6V. It is RoHS compliant and lead-free.
Frequency20MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F5632IPZR technical specifications.
General
Package/Case
LQFP
Core Architecture
CPUXV2
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USB, IrDA, USART, SCI
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
16
Number of ADC Channels
16
Number of GPIO
74
Number of I/Os
74
Number of Programmable I/O
74
Number of Timers/Counters
4
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
1000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
18KB
RoHS Compliant
Yes
Series
MSP430F5xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F5632IPZR Datasheet
Download the complete datasheet for Texas Instruments MSP430F5632IPZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

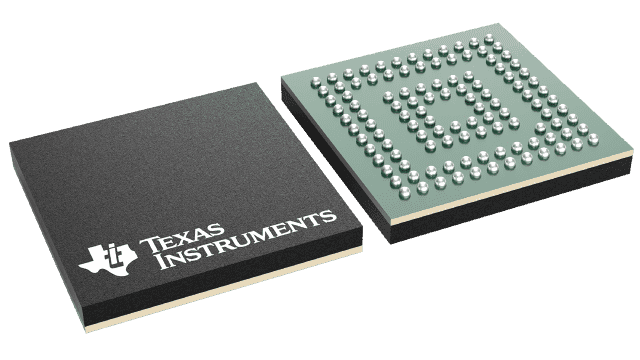

Product Images
